WilsonPro 1000 Building Cell Signal Booster System [Wall Mount] *DISCONTINUED

(No reviews yet) Write a Review
*** No Longer Available

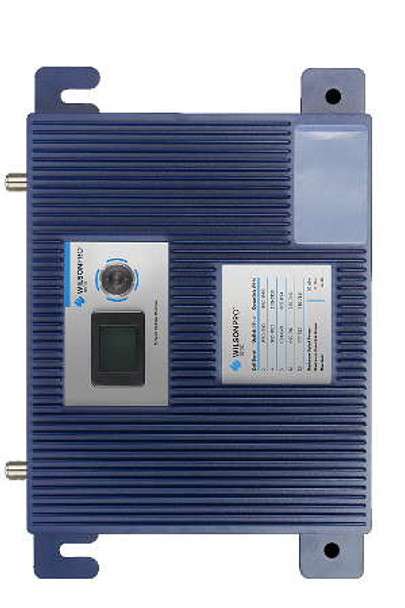

  • WilsonPro 1000 Cellular Booster System
  • WilsonPro 1000 Components
  • WilsonPro 1000 Cellular Amplifier
** Discontinued **

Out of Stock


This Signal Booster System Has Been Discontinued

* Shop The Complete Line Of Newest WilsonPro Commercial Building Signal Booster Systems



The WilsonPro 1000 is a cellular amplifier designed to provide enhanced in-building cellular coverage up to 35,000 sq ft. Built for commercial spaces, including large homes, hospitals, hotels, warehouses and offices.

All Bands, Multi-Carrier Cellular Amplifier

The WilsonPro Pro 1000 is Wilson's flagship cellular amplifier system providing significantly enhanced voice and data coverage, including 4G LTE inside commercial buildings where cell signals may not otherwise penetrate. The result for your clients are no more dropped calls or lost connections, faster uploads/downloads and a reliable, up to 32x stronger signal. The WilsonPro Pro 1000 delivers maximum FCC-allowed downlink power to provide the largest possible indoor signal coverage.

Picture Of Cellular Carrier Logos

Service Providers Covered

The WilsonPro Pro 1000 covers all carriers in the United States using 800 MHz and 1900 MHz for phone calls as well as 3G Internet. It also covers most 4G frequencies.

  • All Carriers In The US - 800 MHz, 1900 MHz, 3G Internet
  • AT&T 4G 700 MHz LTE
  • Verizon 4G 700 MHz LTE
  • T-Mobile 4G 700 MHz LTE, 1700/2100 MHz
  • Sprint 1900 MHz G

Coverage Area

How Large An Indoor Area Will This Signal Booster Cover?

With a very good signal outdoors (at the outdoor antenna location), this signal booster will cover up to 35,000 sq ft indoors. The amount of indoor coverage area is dependent on the outside signal strength. The stronger the outdoor signal, the more indoor area coverage. Like all signal booster systems, this system requires the outdoor antenna to be placed in an area where there is a good consistent signal in order to get the most improved signal coverage area indoors.

Estimated Coverage Area For This System Configuration

Signal Strength Estimated Indoor Coverage Area
 -100 db (1-2 Bars)  3,000 sq ft
 -90 db (3-4 Bars)  18,000 sq ft
 -80 db (5 Bars)  30,000 sq ft

How To Get The Best Coverage

The key to getting the best indoor signal coverage, is getting the outdoor antenna to where the signal is best. The stronger the outdoor signal, the larger the coverage area indoors. If your signal is 2 bars or less and fluctuates downward a lot, you will not get much coverage on the inside. In this case your phone will need to be very close to the indoor antenna to see signal improvement.

Other WilsonPro Signal Booster Systems.

We can help you select the best system for your building. Feel free to Contact Us  with your requirements.

Also See: Estimating Coverage Area

Key Features

  • XDR technology: never shuts down, regardless of outside cell signal
  • Industry-best +15 dBm maximum downlink power
  • Full color LDC display, indicating gain and power levels of each band
  • Compatible with most US cell networks
  • Integrated power supply
  • Three-year warranty

Contact Us For Pricing

The WilsonPro 1000 cannot be sold online. Contact Us for pricing and installation information. We can recommend an installer in your area as well.


The WilsonPro 1000 covers up to 35,000 sq ft (depending on outside signal strength) inside a building.

XDR Technology

The WilsonPro Pro 1000 also includes Wilson Electronics’ state-of-the-art XDR (Extra Dynamic Range) technology that prevents signal overload conditions which can, in accordance with FCC regulations, force a booster to reduce power or even shut down.

When the WilsonPro Pro 1000 senses that any incoming cell signal is too strong and threatens to overload the system, XDR automatically reduces signal gain to compensate for this overload condition while maintaining signal coverage throughout the building. In contrast, most competing signal boosters shut down when they reach a maximum incoming signal strength threshold, causing the indoor cell signal to drop out. Both antenna ports are located on the top of the booster unit for easy installation. Like all WilsonPro cellular amplifiers, the WilsonPro Pro 1000 system is universal: it works for all cellular devices, all services including 4G LTE, and all U.S. cell phone carriers.

Package Includes:

  • WilsonPro 1000 Amplifier
  • Outdoor Directional Antenna
  • Indoor Dome Antenna
  • Lightning Surge Protector & 2 foot Patch Cable
  • 75 Foot Wilson400 Cable
  • 100 Foot Wilson400 Cable

prop 65 symbolWARNING: Cancer and Reproductive Harm -

* Professional Installation Required

The WilsonPro 1000 amplifies weak cellular signals to provide reliable voice and data coverage–including 4G – to inside spaces where signals may not penetrate and with new eXtended Dynamic Range (XDR) technology, the amplifier never shuts off due to a strong outside signal or changes in outside signals.

Like all WilsonPro cellular signal boosters, the WilsonPro 1000 features cell site protections that auto-detect and prevent any cell tower interference.


  • Model 460236
  • Band 12 700 MHz
  • Band 13 700 MHz
  • Band 5 850 MHz
  • Band 4 1700/2100 MHz
  • Band 25/2 1900 MHz
  • Max Gain: 70 dB
  • Impedance: 50 Ohm
  • Power: 110 - 240 V AC, 50 - 60 Hz, 30 W
  • Connectors: N-Female


No Purchases Outside the U.S.

Unfortunately All weBoost and WilsonPro Signal Booster Systems can only be shipped and used within the United States. weBoost or WilsonPro products certified by the U.S. Federal Communications Commission (FCC) are no longer recognized by Industry Canada (IC) to be certified for use in Canada and cannot be used or shipped to Canada. There are specific version of Canadian Approved (IC) than can be used. Please contact a weBoost or WilsonPro dealer in your country for these systems.


This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
