Coaxial Cable Connector Pictures

Here are some images of common coaxial cable connectors used for cellular signal booster systems and antennas.

Connector Gender - Male or Female?

For coax cable used in cellular antennas and booster systems, coax connector gender is many times different than nuts & bolts. Since coax cable has 2 strings of wire (the shield and the core), gender is determined by the middle (core) wire. If you look at a connector and it has a pin in the middle, it's a male. If the connector has a hole in the middle, it's a female. Well, except for Reverse Polarity (see below).

  • Pin in Middle - Male
  • Hole in Middle - Female

The coax connector on the left is an SMA Male connector. Note the pin in the middle.Coax Connectors

Reverse Polarity Connectors

To confuse things further, Reverse Polarity (RP) connectors are typically used for Wireless LAN (WiFi 2.4/5 GHZ) antennas & systems. The middle pin is the "reverse" of the connectors used in cellular systems. They will have the treading (inside or outside) the same however the pin / hole will be reversed. For example, a regular SMA Male Connector with have a pin in the middle and threads on the inside. A Reverse Polarity (RP) SMA Male will have the same threads on the inside but will have a hole in the middle. See pictures below.

TNC Male Connector


  • 7/16 28 threaded coupling
  • Male Diameter: 0.590 in (15.0 mm)

TNC Female Connector

  • Threads On the Outside, Hole in the Middle
  • Female Diameter: 0.378 in (9.6 mm)
  • Threading 7/16-28

Mini-UHF Male


  • 3/8-24 threaded coupling

Mini-UHF Female




FME Male Connector


  • 13/32 M8XP .75 thd.

FME Female Connector


SMA Male


  • Male Diameter: 0.312 in (7.9 mm)
  • 5/16 inch Hex Nut (0.3125 inch / 7.9 mm)
  • 1/4 .250-36 threaded coupling

SMA Female




Reverse Polarity RP-SMA Male




















  • 1/4 .250-36 threaded coupling

Reverse Polarity RP-SMA Female

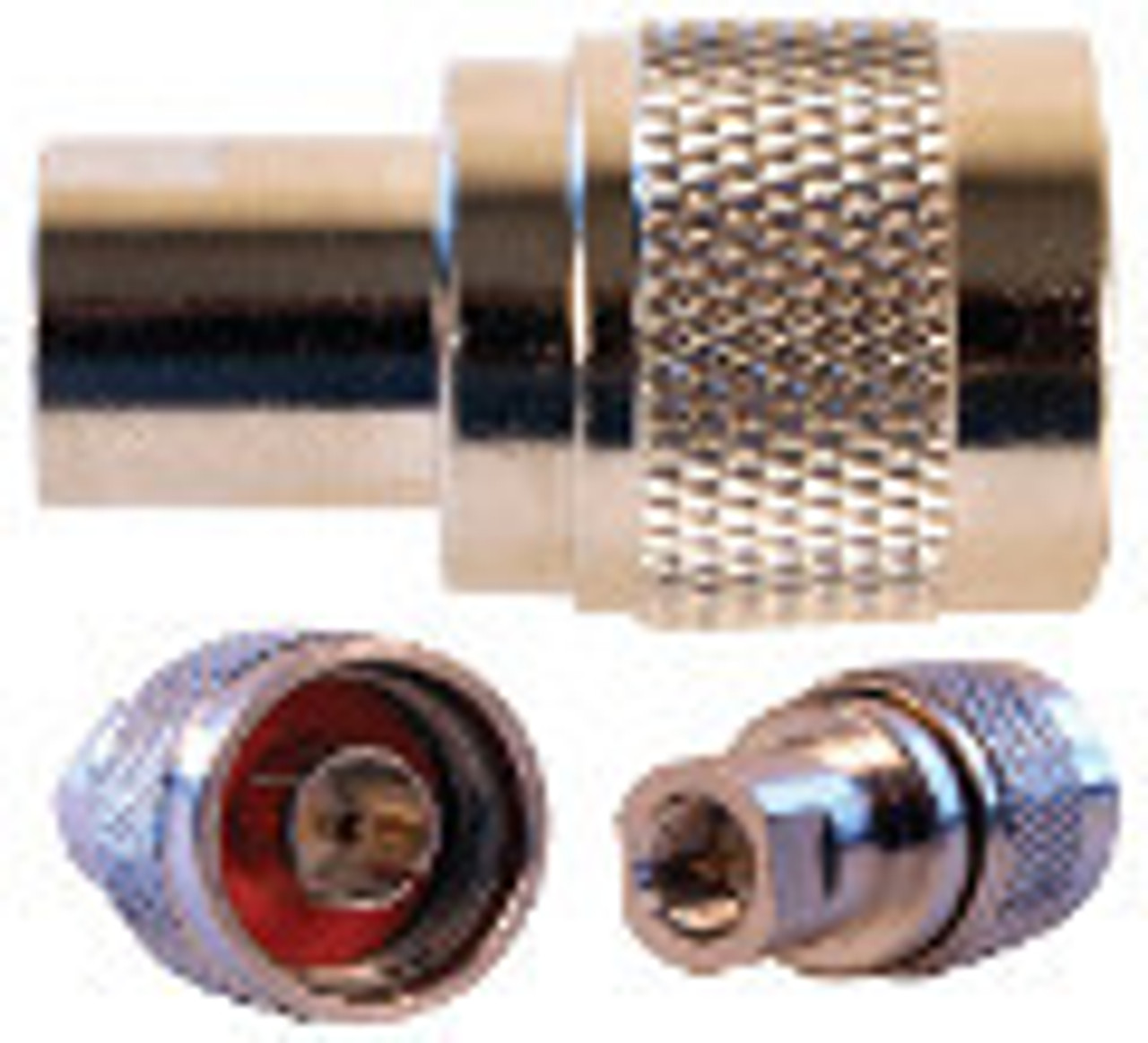

N Male


  • Note pin in the middle, threads on the inside
  • Male N Connector Diameter: 0.800 in (2.03 cm)
  • 5/8-24 threaded coupling

N Female

  • Note threads on the outside and hole in the middle
  • Female N Connector Diameter: 0.620 in (1.57 cm)
  • 5/8-24 threaded coupling

F Male Connector (RG-6 Coax Cable)


  • The F connector along with RG-6 cable
  • Commonly used for cable & satellite TV
  • 3/8-32 threaded

F Female Connector


BNC Male


BNC Female
