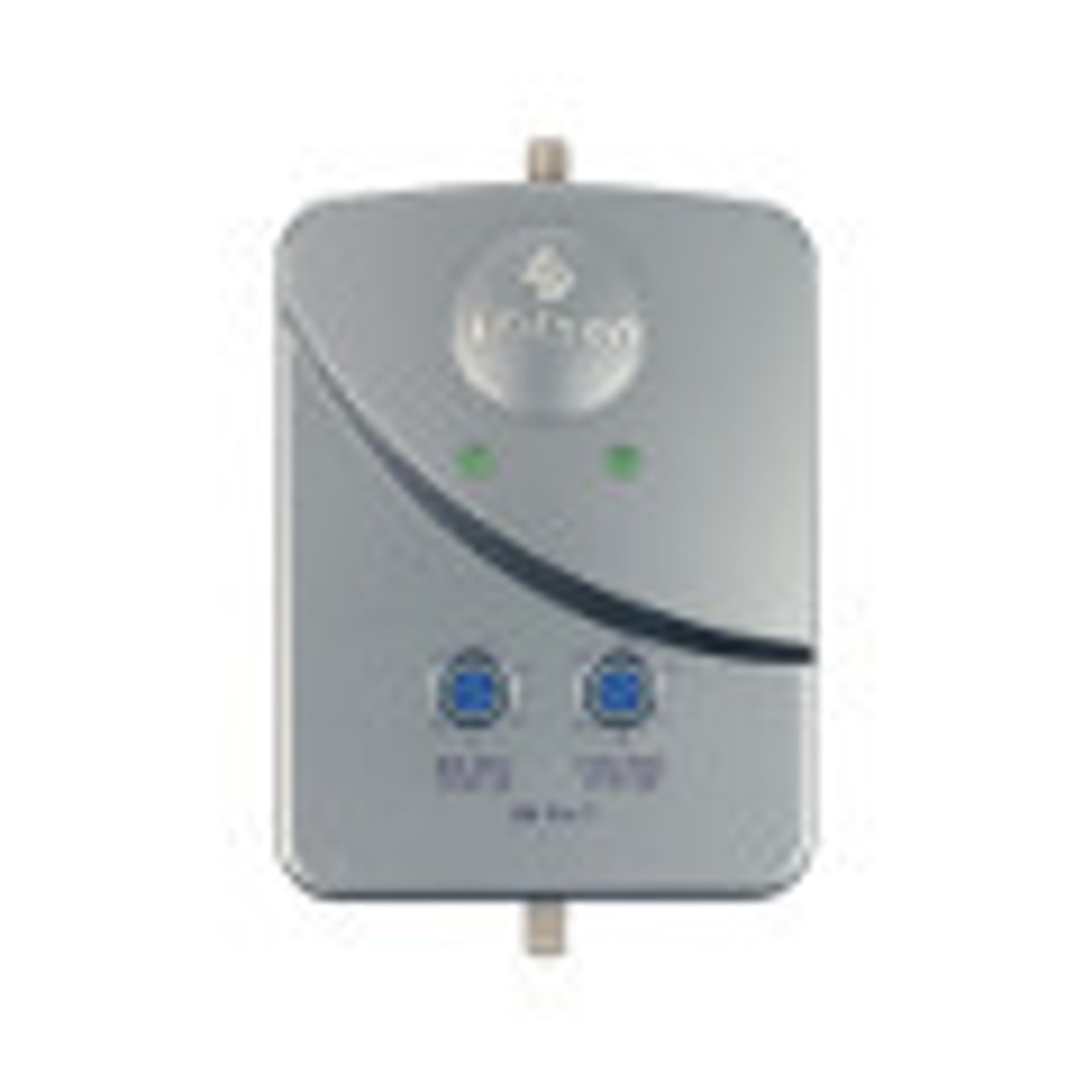

Wilson Electronics DB Pro 65

Building Cellular Repeater System

The Wilson Electronics (weBoost) SignalBoost DB Pro Dual Band cellular repeater greatly improves signal strength for any cellular device inside a building on most networks. It does not require any physical connection to your phone allowing you to walk around freely during a call. It even allows multiple cell phones and/or Data Cards to be used simultaneously.

The DB Pro™ is a bi-directional amplifier that deliver service levels consistent with what would be expected in areas of high cell network coverage. It can amplify a weak or shadowed cellular signal and repeat it inside a building.

Benefits

  • Keeps You In Touch - Reduces missed & dropped calls,
  • Keeps You Productive - A better cell signal means faster Internet speeds using your smart device, Hotspot/MiFi, USB Data Card,
  • Longer Cellular Device Battery Life - a weak signal forces your device to work harder and use more power,
  • Improves Voice Sound Quality.

How The DB Pro Works

When using the DB Pro amplifier in conjunction with Wilson antennas, the outside antenna will collect the cell tower signal and send it through the cable to the amplifier. The signal is then amplified and broadcast from the inside antenna to the surrounding area. Cell phones, Hotspots / MiFi devices and cellular data cards can that area then communicate with the improved signal. When a cell phone or cellular device transmits, the signal is received by the inside antenna, amplified by the amplifier and broadcast back to the cell tower through the outside antenna.


Adjustable Gain Controls

The benefit of adjustable gain is that the DB Pro can be configured to cover large or medium sized areas. An installation challenge of in-building signal boosters is getting enough separation between the inside antenna and outside antenna to prevent oscillation between the two antennas. Oscillation will prevent the system from working properly. The installer is usually faced with several fixed gain amplifier options. For example, in a small building, with a good outside signal, it may be difficult to get 25-50 feet of antenna separation required to prevent oscillation. With a Wilson adjustable gain amplifier, you can adjust the gain downwards to get the strong cell coverage you need, without oscillation.

Types of Building Applications

The DB Pro is very versatile and can be configured to work in many different types of buildings. The DB Pro has been used in Homes, Offices, Warehouses, Fire Stations, Command Posts and many other building types. The Wilson SignalBoost DB Pro offers DIY installation. All components are interconnected using standard TV cable (Quad Shield RG-6) which is easily available and often found already installed, simplifying cable runs.

Which Outside Antenna To Select?

The DB Pro Kits are available with 2 different types of outside antenna - Directional and Omni-Directional.

Omni-Directional Antenna Kit Option  - Used to capture signal from any direction from multiple service providers towers in the area. If you are trying to capture multiple service providers and their cell towers are in opposite directions, use an Omni-Directional antenna.

Directional Antenna Kit Option - Higher gain / stronger antenna used to capture the most signal from ONE direction, point this antenna towards your service providers tower. Gets the best signal but in one direction.

Wilson weBoost DB Pro 3G & 4G System Parts & Components

We stock Wilson DB Pro system components & parts like indoor and outdoor antennas, connectors, adapters, coax cables, splitters, combiners, taps and other accessories. We list them below. If you can't find what you need or need expert advice, feel free to contact us.

Sort by:
  • Wilson RG-6 50ft  Quad Shield Coax Cable F Male
    Wilson RG-6 50ft Quad Shield Coax Cable F Male 14.99
    50 ft RG-6 Quad Shield Coax Cable with F male connector on both ends. 50 Feet RG-6 Coax Cable Quad Shield 75 ohm RG-6 coax cables for 75ohm antennas and amplifiers. This high quality RG6 coax cable is quad shielded and 75...
  • Wilson DB Pro 3G Building Signal Booster Omni-Directional Kit *DISCONTINUED
    Wilson DB Pro 3G Building Signal Booster Omni-Directional Kit *DISCONTINUED
      * Discontinued - No Longer Available The Wilson DB Pro 3G is no longer available. The same system under the weBoost label is the weBoost Connect 3G  or weBoost Connect 4G DB Pro 3G 462105 / 462005 Replacement...
  • Wilson DB Pro 3G Building Signal Booster Directional Kit 462205 *DISCONTINUED
    Wilson DB Pro 3G Building Signal Booster Directional Kit 462205 *DISCONTINUED
      * Discontinued - No Longer Available The Wilson DB Pro 3G is no longer available. The same system under the weBoost label is the weBoost Connect 3G  or weBoost Connect 4G DB Pro 3G 462105 / 462005 Replacement...
  • weBoost Connect 3G Building Signal Booster
    weBoost 472205 Connect 3G Directional Building Cellular Signal Booster 399.99
    Features: • Ideal for Homes, Small Offices & Workspace• Covers up to 5,000 Sq. Ft. With A Strong Signal Outside. • Works With Multiple Devices • Stronger Directional Outdoor Antenna • Boost...
  • weBoost Connect 3G Signal Booster System
    weBoost 472105 Connect 3G Omni Building Cellular Signal Booster 399.99
    Features: • Ideal for Homes, Small Offices & Workspace• Covers up to 5,000 Sq. Ft. With A Strong Signal Outside.• Boost Voice & 3G Internet Signals • Works For AT&T, Verizon, Sprint &...
  • Laird UML Universal Antenna Mount
    Laird UML Long Universal Antenna Mount ANT-DS-UML 24.99
    Laird UML Universal Antenna Mount The Laird UML Universal Antenna Mounting System consist of a Universal Mounting Bracket and galvanized steel Tube that offers a variety of antenna mounting options. The construction is...
  • Laird UML Universal Antenna Mount
    Laird Universal Antenna Mount ANT-DS-UM 22.99
    Laird Universal Antenna Mount The Laird Universal Antenna Mounting System consist of a universal bracket and galvanized steel pole that offers a variety of antenna mounting options. The construction is better than many of...
  • Laird Wall Antenna Mount Bracket WMB-8
    Laird Wall Antenna Mount Bracket WMB-8 12.99
    Laird Wall Mount Bracket The Laird WMB-8 universal wall mounting bracket offers low cost, attractive styling and easy installation. It is constructed of zinc plated steel for long service life. The mount seams are welded...
  • weBoost 859948 5v/2.5A AC Wall Outlet Power Supply
    weBoost 859948 5v/2.5A AC Wall Outlet Power Supply 23.99
    Replacement AC Power Supply. Compatible with the following weBoost amplifiers weBoost Home 4G, Signal 4G and weBoost Connect 4G. Also used with the Wilson DB Pro 4G amplitiers (Not for DB Pro 3G - use 859912 6v AC Power...
  • Wilson 4-Way Signal Splitter 700-2700 MHz 75 OHM F Female Connectors
    Wilson 4-Way Signal Splitter 700-2700 MHz 75 OHM F Female Connectors 119.99
    weBoost 75 Ohm 4 Port 700-2700 MHz Splitter with F Female Connectors. Use with 75 OHM signal booster systems like the weBoost Connect 3g, Connect 4G, Wilson DB Pro 3G and DB Pro 4G. Usage This 4 Way Splitter has 1 input...
  • Wilson 6VDC AC Power Supply
    Wilson 6VDC AC Power Supply 18.99
    AC Power Supply for Wilson 6 volt amplifiers. Works with Wilson Mobile 6 Volt amplifiers and Wilson Building 6 volt amplifiers. AC to DC power supply. Converts 120v AC to 6v DC. Not for use with Wilson 12 volt or 5 volt...
  • Wilson 700-2400MHz 3-Way Splitter 75 Ohm w/F Fem
    Wilson 700-2400MHz 3-Way Splitter 75 Ohm w/F Fem 79.99
    Wilson Electronics 75 OHM 3-Way splitter with F Female connectors. Join 3 antennas to one amplifier.Wilson Wideband 3 Way Splitter 859994 allows you to send a cell signal from one source (such as a 75 Ohm In Building...
  • Wilson 75 Ohm 2 Way Splitter 700-2300MHz / F Female
    Wilson 75 Ohm 2 Way Splitter 700-2300MHz / F Female 69.99
    The Wilson Electronics 2 Way Splitter allows you to connect 2 inside building antennas to one amplifier. Antenna Splitter has F female connectors. Use with 75ohm amplifiers and RG-6 cable with F male connectors.Wilson 2 Way...
  • Wilson 75ohm Lightning Surge Protector and 2ft Patch Cable
    Wilson 75ohm Lightning Surge Protector and 2ft Patch Cable 69.95
    Wilson Electronics 75ohm lightning surge protector with 2ft patch cable. Protect your cellular signal booster equipment from lightning strikes. Lightning Surge Protector + 2 Foot RG-6 Patch Cable Protect your expensive...
  • 75 Ohm Lightning Surge Protector
    Wilson 75ohm Lightning Surge Protector F Fem 69.99
    Wilson Electronics 75ohm lightning surge protector. Protect your cellular signal booster equipment from lightning strikes. Has F Female connectors on both ends to connect to RG-6 cable. 859992 Protect your expensive...
  • Wilson 75ohm Surge Protector Replacement Element
    Wilson 75ohm Surge Protector Replacement Element 5.95
    Replacement gas discharge element. Fits Wilson 859992 75ohm Lightning Surge Protector.
  • Wilson 859976 -10dB Tap -0.5 dB PassThru 700-2500MHz 75OHM
    Wilson 859976 -10dB Tap -0.5 dB PassThru 700-2500MHz 75OHM 69.99
    Wilson 75 Ohm Tap -10 dB Tap with -0.5 dB Pass-Thru. F Female Connectors. Splitter used to send unequal amounts of signal to two antennas for different sized areas. 859976   Wilson Electronics Tap -6 dB Tap with -1.5...
  • Wilson Wide Band Directional Cellular Antenna 75ohm F Female
    Wilson Wide Band Directional Cellular Antenna 75ohm F Female 71.99
    Wilson Wide Band Log Periodic Directional Antenna - 75 ohm (for RG-6 Cable Installations). Frequency Range: 700-2500MHz. Comes with F Female connector. 314475 (Replaces 304475). Wilson Wide Band Directional...
  • Wilson 311201 75 ohm Omni-Dir Building Mount Antenna F Fem
    Wilson 311201 75 ohm Omni-Dir Building Mount Antenna F Fem 71.99
    Wilson 75 ohm building mount cellular antenna made for use with the weBoost Connect 3G, Wilson DB Pro cellular amplifier systems. 311201 (formerly 301201) The Wilson 75ohm building mount cellular antena is used with 70 Ohm...
  • Wilson 304471 75ohm Ceiling Mount Panel Cellular Antenna
    Wilson 304471 75ohm Ceiling Mount Panel Cellular Antenna 75.99
    Wilson Electronics 75 ohm Ceiling Mount Panel Cellular Antenna 304471. For use with Wilson Electronics 75ohm In-Building Cellular Signal Boosters. F Female Connector The Wilson Panel Cellular Antenna is the perfect solution...
  • Wilson 304472 75ohm Panel Cellular Antenna Window Mount F- Female
    Wilson 304472 75ohm Panel Cellular Antenna Window Mount F- Female 76.99
    Wilson Cellular Panel Antenna 75ohm - Window Mount. Used for 75 Ohm Building Cell Signal Boosters. Typically mounted in the interior of a building to a window and pointed outside, towards the nearest tower. Suction cups...
  • Wilson Outdoor Panel Cellular Antenna 75ohm F Fem
    Wilson Outdoor Panel Cellular Antenna 75ohm F Fem 69.99
    Wilson Outdoor Panel Antenna 75ohm - For use as an outside antenna for building cellular signal boosters. Comes with F Female connector. Additional Cable required but not included. 304473 / 314473 The Wilson Outdoor Panel...
  • Wilson 75ohm DualBand Panel Cellular Antenna 311155
    Wilson 75ohm DualBand Panel Cellular Antenna 311155 69.99
    Wilson Cellular Wall Mount Panel Antenna. 75-ohm directional antenna for use with 75-ohm in-building cellular booster systems such as the Wilson SignalBoost DB Pro. Comes with an F Female connector. 311155 / 301155 Wilson...
  • Wilson 75ohm Dome Cellular Antenna 301151
    Wilson 75ohm Dome Cellular Antenna 301151 52.99
    Wilson 75 ohm Dome Cellular Antenna. Ceiling mount directional antenna. Use with Wilson 75 ohm In-Building Cellular Signal Booster Systems. F Female type connector. 301151. Wilson Electronics Cellular Dome Antenna - 75...
  • Wilson RG-6 20ft  Quad Shield Coax Cable F Male
    Wilson RG-6 20ft Quad Shield Coax Cable F Male 7.99
    2 ft RG-6 Quad Shield Coax Cable with F male connector on both ends.20 Foot of RG-6 Coax Cable Quad Shield 75 ohmRG-6 coax cables for 75ohm antennas and amplifiers. This high quality RG6 coax cable is quad shielded and 75...
  • Wilson RG-6 2ft Quad Shield Coax Cable F Male
    Wilson RG-6 2ft Quad Shield Coax Cable F Male 3.99
    2 ft RG-6 Quad Shield Coax Cable with F male connector on both ends.RG-6 Coax Cable Quad Shield 75 ohmRG-6 coax cables for 75ohm antennas and amplifiers. This high quality RG6 coax cable is quad shielded and 75 ohm and comes...
  • Wilson RG-6 30ft Quad Shield Coax Cable F Male
    Wilson RG-6 30ft Quad Shield Coax Cable F Male 10.99
    30 ft RG-6 Quad Shield Coax Cable with F male connector on both ends.30 Feet RG-6 Coax Cable Quad Shield 75 ohmRG-6 coax cables for 75ohm antennas and amplifiers. This high quality RG6 coax cable is quad shielded and 75 ohm...
  • Wilson RG-11 Coax Cable 100 FT F Male
    Wilson RG-11 Coax Cable 100 FT F Male 100.99
    Wilson RG-11 Coax Cable in a 100 Foot roll with F Male Connectors on each end. 951100Wilson Electronics RG-11 75 ohm cable for lower attenuation (less signal loss) when compared to RG-6. Great for longer cable runs. Use with...
  • Wilson RG-11 Coax Cable 2ft F Male
    Wilson RG-11 Coax Cable 2ft F Male 17.99
    2 Foot RG-11 coax cable with F Male connectors on each end. RG-11 is a lower loss cable compared to RG-6. Ideal for cellular signal booster systems with longer cable runs as well as other applications.
  • Wilson RG-11 Coax Cable 50 FT F Male
    Wilson RG-11 Coax Cable 50 FT F Male 60.99
    Wilson RG-11 Coax Cable in a 50 Foot roll with F Male Connectors on each end. 951150 Wilson Electronics RG-11 cable for lower attenuation (less signal loss) when compared to RG-6. Great for longer cable runs. Use with 75...
  • Wilson RG-11 Coax Cable 500 Feet
    Wilson RG-11 Coax Cable 500 Feet 458.99
    Bulk Wilson RG-11 Coax Cable in a 500 Foot Roll. 951155 Wilson Electronics RG-11 75 ohm cable for lower attenuation (less signal loss) when compared to RG-6. Great for longer cable runs. Use with 75 ohm signal booster...
  • Wilson RG-11 Coax Cable 75ft F Male
    Wilson RG-11 Coax Cable 75ft F Male 84.99
    Wilson RG-11 Coax Cable in a 75 Foot roll with F Male Connectors on each end. 951175 Wilson Electronics RG-11 75 ohm cable for lower attenuation (less signal loss) when compared to RG-6. Great for longer cable runs. Use...
×
×
