Wilson 4G Omni PLUS Building 75ohm Antenna F Female

(No reviews yet) Write a Review
SKU:
AE304423
UPC:
811815026723
Condition:
New
Availability:
In Stock - Usually Ships In 1-3 Days
  • Wilson 4G Omni PLUS Building Antenna
  • Wilson 4G Omni PLUS Building Antenna
  • Antenna Mount
MSRP: $99.99
$94.99
— You save $5.00

Description

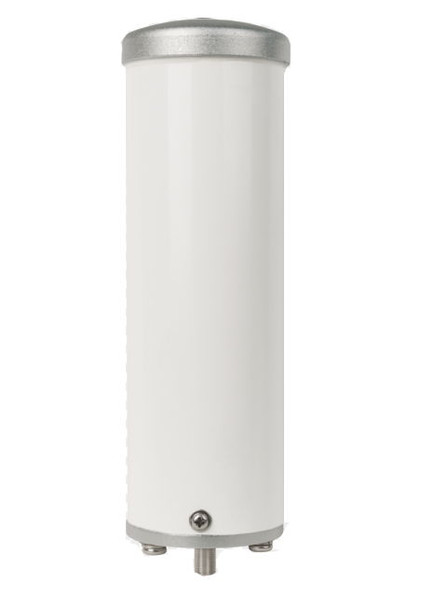

Wilson 4G Omni PLUS Building Mount Antenna with F Female Connector.

The new Wilson 4G Omni PLUS Antenna is designed to serve as an outdoor antenna for 75 Ohm 4G Building Cellular Repeater Systems. It can also be connected to 4G devices such as Hotspots & Routers for a better 4G signal. The antenna is weatherproof and fiberglass-encased and is omnidirectional. It is ideal for building signal booster installs for homes, office buildings, portable buildings, trailers, etc. The antenna has a built-in ground plane for greatest performance.

Wilson's innovative design results in high-efficiency and low signal loss, which means more signal to your cell phone, cellular data card or in-building amplifier system.

Wilson Building Mount Antenna Package Includes:

  • Wilson 4G Building Antenna
  • Attached F Female Connector
  • L-Mount Bracket with Wood Screws and U-Bolt (Mount on pole or against flat surface. Pole not included)
  • Installation Guide

RF Safety Warning: The outside antenna must be installed with a separation of at least 16 inches from any occupants or nearby persons and it must not be located or operating in conjunction with any other antenna or amplifier.

prop 65 symbolWARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Specifications

  • Frequency 698-960 Mhz / 1710 - 2700MHz
  • Impedance: 75 ohm
  • Polarization: Vertical
  • Gain: 2dB (698-960 Mhz), 5 dB (1710 - 2700MHz)
  • VSWR: < 1.8
  • Power Rating" 100 W
  • Radome Material: UV resistant PVC
  • Color: White
  • All Weather Protected
  • Operating Temp: -40 to 149 Deg F
  • Connector: F Female - RG-6 / RG-11 Cable Type
  • Dimensions: 2.5 inches x 9.8 inches
  • Weight: 1.9 Lbs.
  • Ground Plane: Built-In Ground Plane
  • Rated Wind Velocity: 130mph
  • Mounting: Wall or Pole (1.5-2.0in)
