Product Description

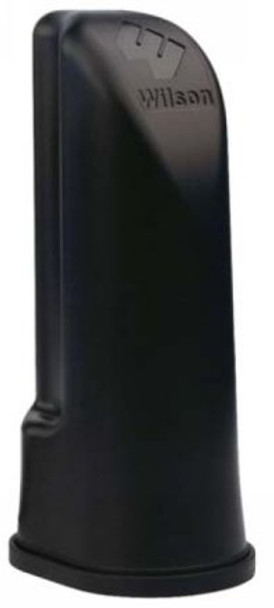

Wilson Directional Desktop Antenna
The Wilson Electronics Directional Desktop Antenna is a low profile antenna that has multiple uses.
- Interior mounting as an external antenna in vehicles
- Interior antenna when used with an In-Vehicle amplifier/repeater
- Interior antenna when used with an In-Building amplifier/repeater
The Desktop Antenna has a built in ground plane and includes an FME adapter for use with a variety of Wilson signal boosters.
Comes with 5 feet of cable with FME Female connector.
Desktop Antenan Installation Guide
Warning: The Desktop Antenna must have a separation of at least 24 inches from all persons during normal operations.
Specifications
- Frequency: 700-800 MHz - Gain: 1 dBi
- Frequency: 824-894 MHz - Gain: 1.5 dBi
- Frequency: 880-960 MHz - Gain: 1.2 dBi
- Frequency: 1710-1880 MHz - Gain: 2.4 dBi
- Frequency: 1850-1990 MHz - Gain: 2.0 dBi
- Frequency: 2110-2170 MHz - Gain: 1.2 dBi
- Impedance: 50 ohms
- Radiation: Omni
- Polarization: 120 deg H Plane
- Connector: FME Female
- Coax Cable: 5 ft. RG-174
- Height: 5.3 inches / 13 cm
- Width: 1.56 inches / 4 cm
- Mount: Minimum 6 inches away from metal
You may also be interested in the following product(s)
Wilson DualBand 50ohm Panel Antenna - Window Mount
$79.95
|
Wilson Dual Band 50ohm Panel Antenna w/Wall MT
$69.95
|
Wilson Panel Antenna Upgrade Kit for SignalBoost DT 20ft
$99.95
|
Additional Information
| SKU | AE301208 |
|---|---|
| Frequency Range | See Description |
| Gain | See Description |
| Brand | Wilson Electronics |
| Model | 301208 |
| Antenna Mount | Magnetic Mount |
| Connector Type | FME Female |
| Connector 1 | FME |
| Cable Size | RG-174 |
| Antenna Category | Antennas |
| Accessory Type | Antennas |
| Compatible Devices | No |
| GTIN | 813986008287 |
